Dimensions & Dry Mass

Overall Length (mm/inch)

1450/57

Overall Width (mm/inch)

810/32.2

Overall Height (mm/inch)

830/32.6

Axle Base (mm/inch)

900/35.3

Ground Clearance (mm/inch)

100/3.9

Seat Height (mm/inch)

630/24.8

Dry Mass (kg/lbs)

100/220

Available color

Red ,Blue ,Yellow,Black

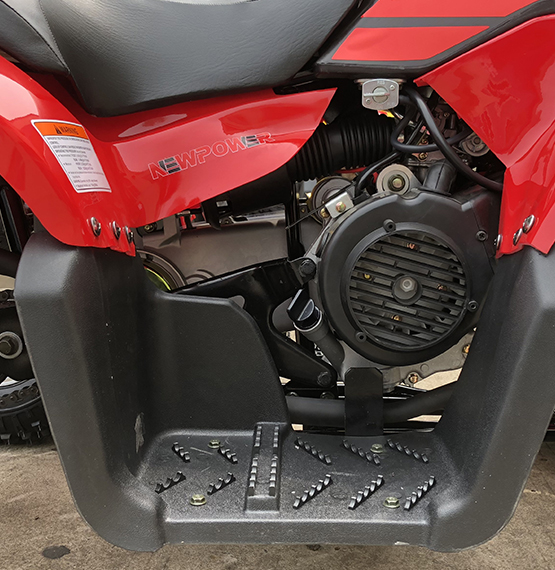

Engine :

Type

One cylinder, 4 stroke, fan cooling,

Bore×Stroke (mm)

57.4×57.8

Displacement (cm3)

149.6

Compression Ratio

9.2∶1

Starting System

El/kick

Max Power (kw/rpm)

7.0/7500

Max Power  (Nm/rpm)

8.3/6000

Ignition System

CDI

Battery

12V7AH

Transmission

Transmission

CVT  Automatic

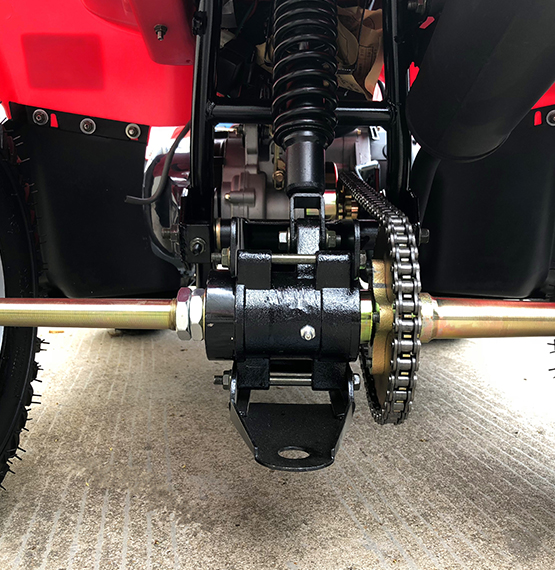

Final Drive

Chain Drive

Chassis

Front Suspension

Independent single A-arm

Rear Suspension

Unit-swing suspension

Front Brake

Drum brake, by hand

Rear Brake

Drum brake, by hand

Front tire size

19×7-8

Rear tire size

19×7-8

Capacities

Fuel Tank (L/gal)

6.8/1.8

Transmission (ml/quart)

100/1

Quantity per container

  97units/40’ HC
