Dimensions & Dry Mass

Overall Length (mm/inch)

1500/59

Overall Width (mm/inch)

840/33

Overall Height (mm/inch)

880/35

Axle Base (mm/inch)

950/38

Ground Clearance (mm/inch)

150/6

Seat Height (mm/inch)

650/26

Dry Mass (kg/lbs)

125/275

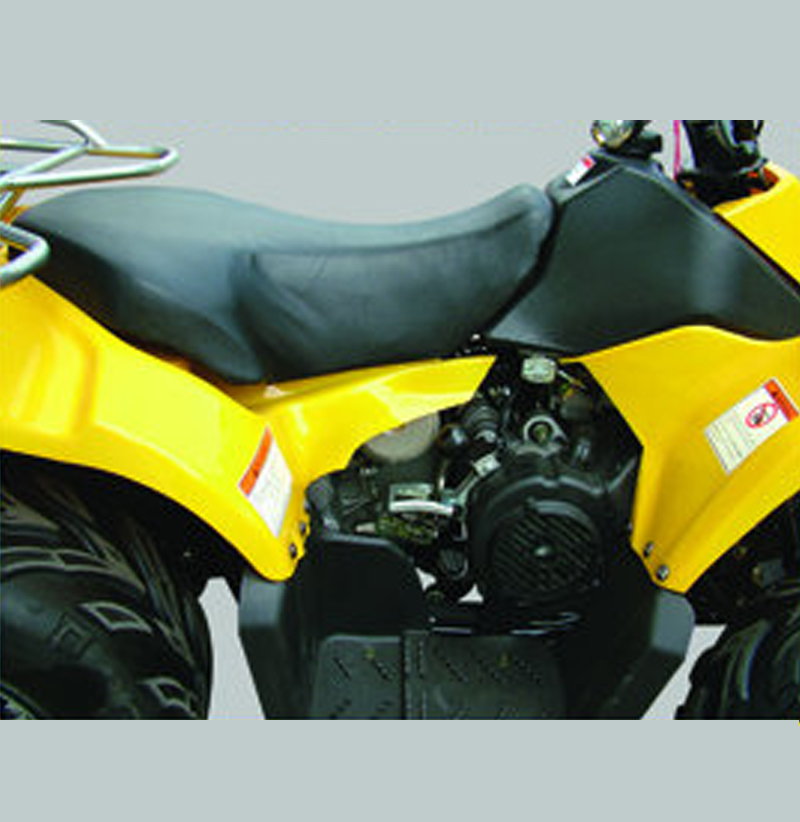

Engine :

Type

One cylinder, 4 stroke, fan cooling,CVT Automatic with reverse

Bore×Stroke (mm)

57.4×57.8

Displacement (cm3)

149.6

Compression Ratio

9.2∶1

Starting System

El/kick

Max Power (kw/rpm)

7.0/7500

Max Power  (Nm/rpm)

10.5/5500

Ignition System

CDI

Battery

12V7AH

Transmission

Transmission

CVT  Automatic  with reverse

Final Drive

Chain Drive

Chassis

Front Suspension

Independent single A-arm

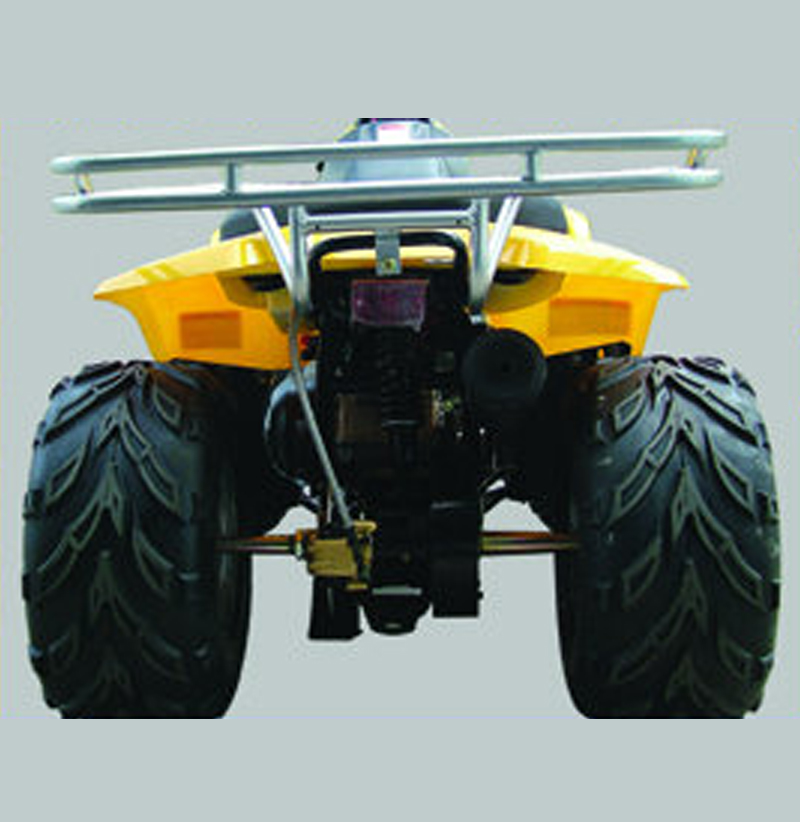

Rear Suspension

Unit-swing suspension

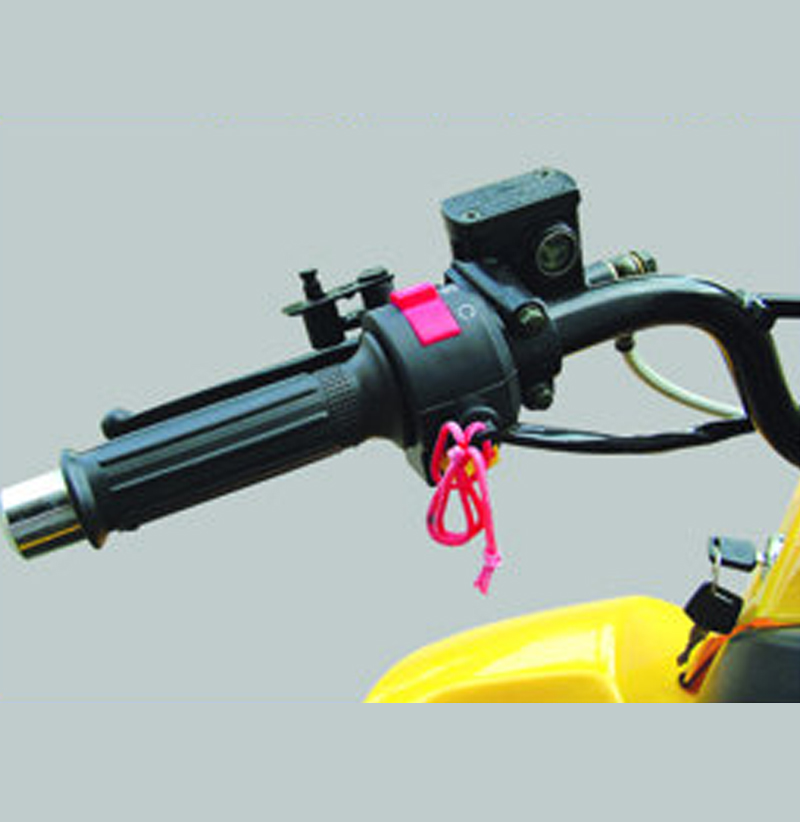

Front Brake

Twin Drum brake, by hand

Rear Brake

Hydraulic disc brake, by hand

Front tire size

19×7-8

Rear tire size

19×7-8

Capacities

Fuel Tank (L/gal)

6.8/1.8

Transmission (ml/quart)

100/1

Quantity per container

  97units/40’ HC
