Dimensions & Dry Mass

Overall Length (mm/inch)

1500/59

Overall Width (mm/inch)

880/35

Overall Height (mm/inch)

1000/39.3

Axle Base (mm/inch)

1020/40

Ground Clearance (mm/inch)

160/6.3

Seat Height (mm/inch)

730/28.7

Dry Mass (kg/lbs)

136/299

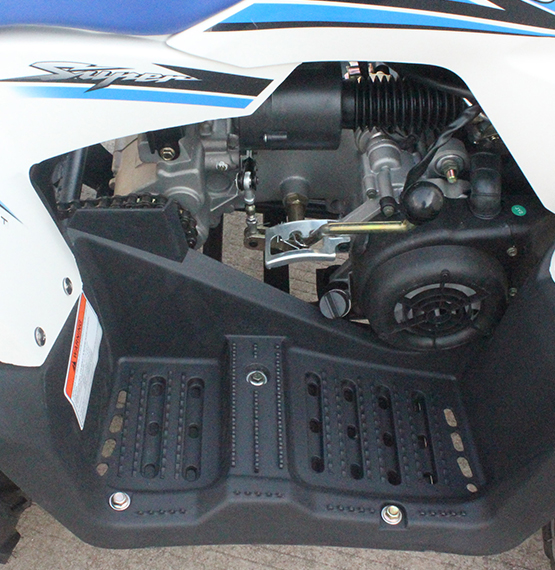

Engine :

Type

One cylinder, 4 stroke, fan cooling, with reverse

Bore×Stroke (mm)

61×57.8

Displacement (cm3)

168.9

Compression Ratio

9.2∶1

Starting System

El/kick

Max Power (kw/rpm)

8.3/8000

Max Power  (Nm/rpm)

11/6000

Ignition System

CDI

Battery

12V9AH

Transmission

Transmission

CVT  Automatic with reverse

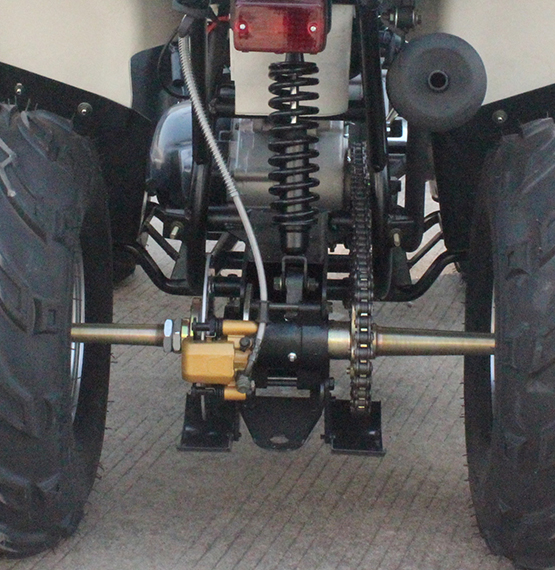

Final Drive

Chain Drive

Chassis

Front Suspension

Independent single A-arm

Rear Suspension

Unit-swing suspension

Front Brake

Twin Drum brake, by hand

Rear Brake

Hydraulic disc, by hand

Front tire size

19×7-8

Rear tire size

18×9.5-8

Capacities

Fuel Tank (L/gal)

6.5/1.72

Transmission (ml/quart)

100/1

Quantity per container

  63units/40’ HC
